| Material | Brass as per IS 319 |
| Plating | Nickel Standard Chrome on request |
| Entry Threads | BSC Standard Metric also available |
| Sealing Rubber Ring | Synthetic / Natural |
| Application | Single Compression Glands are used under regular climatic conditions. These are Whether Proof and may be used in corrosive conditions when protected by a shroud. |

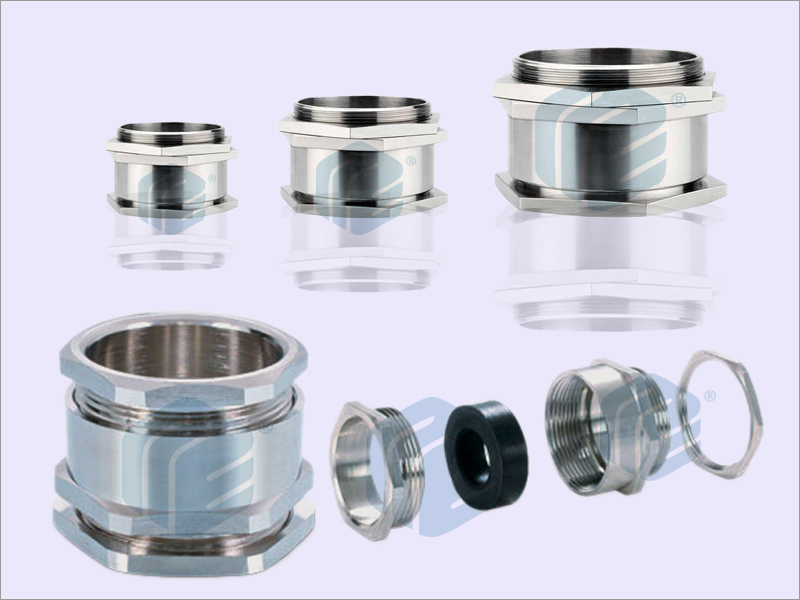

| Part of Gland | Brass Check Nut | Brass Gland Body | MS Washers (3 Nos.) | Rubber Outer Seal | Brass Compression Nut |
| Accessories | All Metal Parts are accurately machined for ease of assembly. Shrouds and earth tags are supplied separately and should be specified when ordering the Gland. |
| Suitable Cable overall Dia. (mm) | Nipple Entry Thread | Cable Gland Dimensions | ||||||||
From |
To |
Inch. |
mm |
A |
B |
C |
D |
E |
F |
G |
12.0 |
10.0 |
3/8" |
10 |
11.5 |
12.5 |
15.5 |
7.5 |
20.5 |
18.0 |
2.5 |
15.0 |
10.0 |
1/2" |
12 |
12.0 |
15.0 |
15.5 |
8.5 |
25.0 |
22.0 |
3.0 |
16.0 |
10.0 |
5/8" |
16 |
14.5 |
16.5 |
16.5 |
8.0 |
24.0 |
21.0 |
2.5 |
16.5 |
14.0 |
3/4" |
19 |
14.5 |
17.5 |
19.0 |
8.5 |
26.0 |
23.0 |
2.5 |
17.5 |
16.5 |
7/8" |
22 |
14.5 |
20.0 |
18.5 |
8.5 |
29.0 |
25.0 |
3.0 |
20.5 |
18.5 |
1" |
25 |
20.5 |
23.0 |
25.0 |
9.0 |
33.0 |
29.0 |
3.0 |
27.5 |
22.5 |
1-1/8" |
28 |
24.0 |
28.0 |
28.5 |
10.5 |
40.0 |
35.0 |
3.5 |
27.5 |
26.5 |
1-1/4" |
32 |
27.0 |
32.0 |
31.5 |
11.0 |
46.0 |
40.0 |
3.5 |
33.0 |
29.6 |
1-3/8" |
35 |
29.5 |
35.5 |
34.5 |
11.0 |
50.0 |
44.0 |
4.0 |
37.0 |
33.5 |
1-1/2" |
38 |
33.0 |
39.5 |
38.0 |
11.5 |
54.0 |
47.0 |
4.0 |
40.0 |
37.5 |
1-3/4" |
45 |
40.0 |
44.5 |
44.0 |
11.5 |
62.0 |
54.0 |
4.5 |
43.0 |
43.5 |
2" |
50 |
45.0 |
51.5 |
50.0 |
13.0 |
69.0 |
60.0 |
5.0 |
52.0 |
49.0 |
2-1/4" |
57 |
51.5 |
58.0 |
56.5 |
13.0 |
78.0 |
68.0 |
5.0 |
56.0 |
64.5 |
2-1/2" |
63 |
57.5 |
62.5 |
63.0 |
14.0 |
82.0 |
72.0 |
5.0 |
67.0 |
61.5 |
2-3/4" |
70 |
63.5 |
69.0 |
69.0 |
15.0 |
90.0 |
80.0 |
5.0 |
73.0 |
66.5 |
3" |
75 |
68.0 |
75.0 |
75.0 |
16.0 |
99.0 |
87.0 |
5.5 |
74.0 |
72.5 |
3-1/4" |
82 |
75.0 |
81.5 |
82.0 |
16.0 |
105.0 |
92.0 |
6.0 |
83.0 |
80.5 |
3-1/2" |
88 |
81.5 |
86.5 |
88.0 |
16.0 |
115.0 |
102.0 |
6.0 |
95.0 |
84.0 |
4" |
100 |
92.0 |
101.0 |
100.0 |
17.0 |
126.0 |
110.0 |
6.5 |
108.0 |
100.0 |
4-1/2" |
112 |
107.0 |
109.0 |
105.0 |
20.0 |
148.0 |
129.5 |
7.5 |
